Szczegóły Produktu:

Zapłata:

Minimalne zamówienie: 1
Najlepsza cena Kontakt

Szczegóły informacji
Model nr: VS-063DA Formularz połączenia: Kołnierz
Struktura: Uszczelnienie środkowe Forma pieczęci: Force zapieczętowano
STEM VALVE: Normalna Presja pracy: Środkowy ciśnienie (2,5 MPa <Pn <6,4MPa)
Temperatura pracy: Średnia temperatura (120°C Materiał pieczęci: Miękkie zamknięte
Korpus zaworu: Blachy Specyfikacja rozmiaru: 2 cale-24 cala
Ciśnienie powietrza siłownika: 80-120 psi Życie cyklu siłownika: 1 milion cykli
Projektowanie siłowników: skrzydło stożkowe Ocena odporna na warunki pogodowe: IP66 i IP68
Standard montażowy: ISO5211
Podkreślić:

Mid-Pressure Air Actuated Butterfly Valve

,

Medium Temperature Butterfly Valve

,

2 inch-24 inch Pneumatic Butterfly Valve

opis produktu

Air Actuated Butterfly Valve with Topworks Limit Switch Box Signal Box
Air actuated soft seated butterfly valve designed for on-off control of water and other compatible media. Features spring return actuators that use air pressure (80-120 PSI) to open and springs to close, ensuring fail-closed operation upon loss of air signal.
Butterfly Valve Standard Features
  • Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
  • Extended lifespan with unique wave line seat and special disc shape design
  • Reduced torque from wave seal and disc design allows for smaller, more cost-effective actuators
  • Increased flow capacity through unique profile disc and two-piece shaft design
  • Standard ISO5211 mounting for direct actuator connection
Pneumatic Actuator Standard Features
  • Extended cycle life (1 million cycles)
  • Rack pinion design for reliable operation
  • Highly visible valve position indicator
  • Type IP66 & IP68 weatherproof rating
  • Anodized aluminum body with epoxy-polyester covers
  • Compatible with dry or lubricated pilot air
  • Namur & ISO mounting options

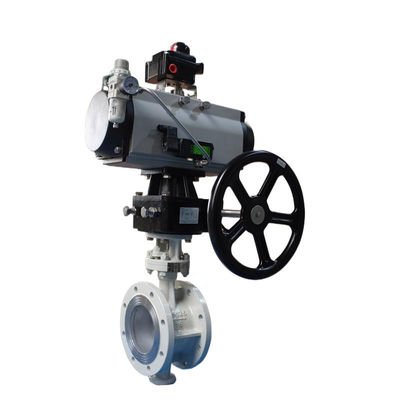

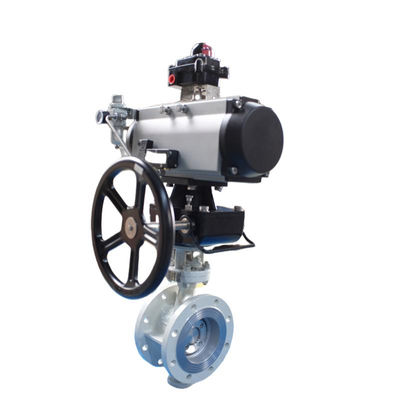

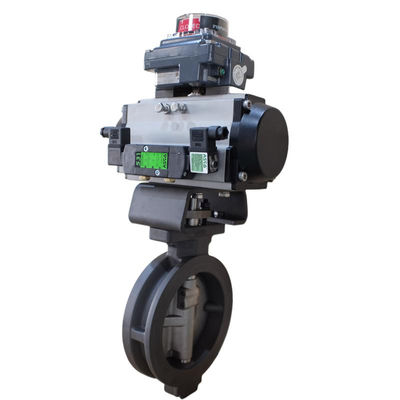

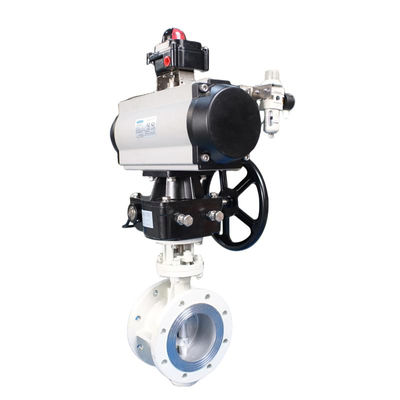

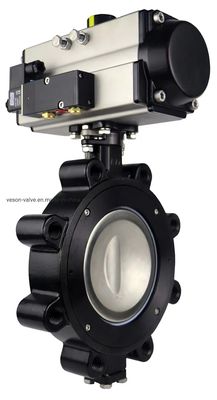

Product Images
Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 0
Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 1
Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 2
Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 3
Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 4
Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 5
